| Bearing Type | Taper roller bearing |
|---|---|
| Brand | SXM/OEM |
| Cage | Steel, nylon, brass, bronze |
| Clearance | C2 C0 C3 C4 C5 |
| Number of Row | Single Row |
| Range (d) | 15-100mm |
| Roller Material | Carbon ,bearing steel,chromium steel,etc |
| Seals Type | open or seal |

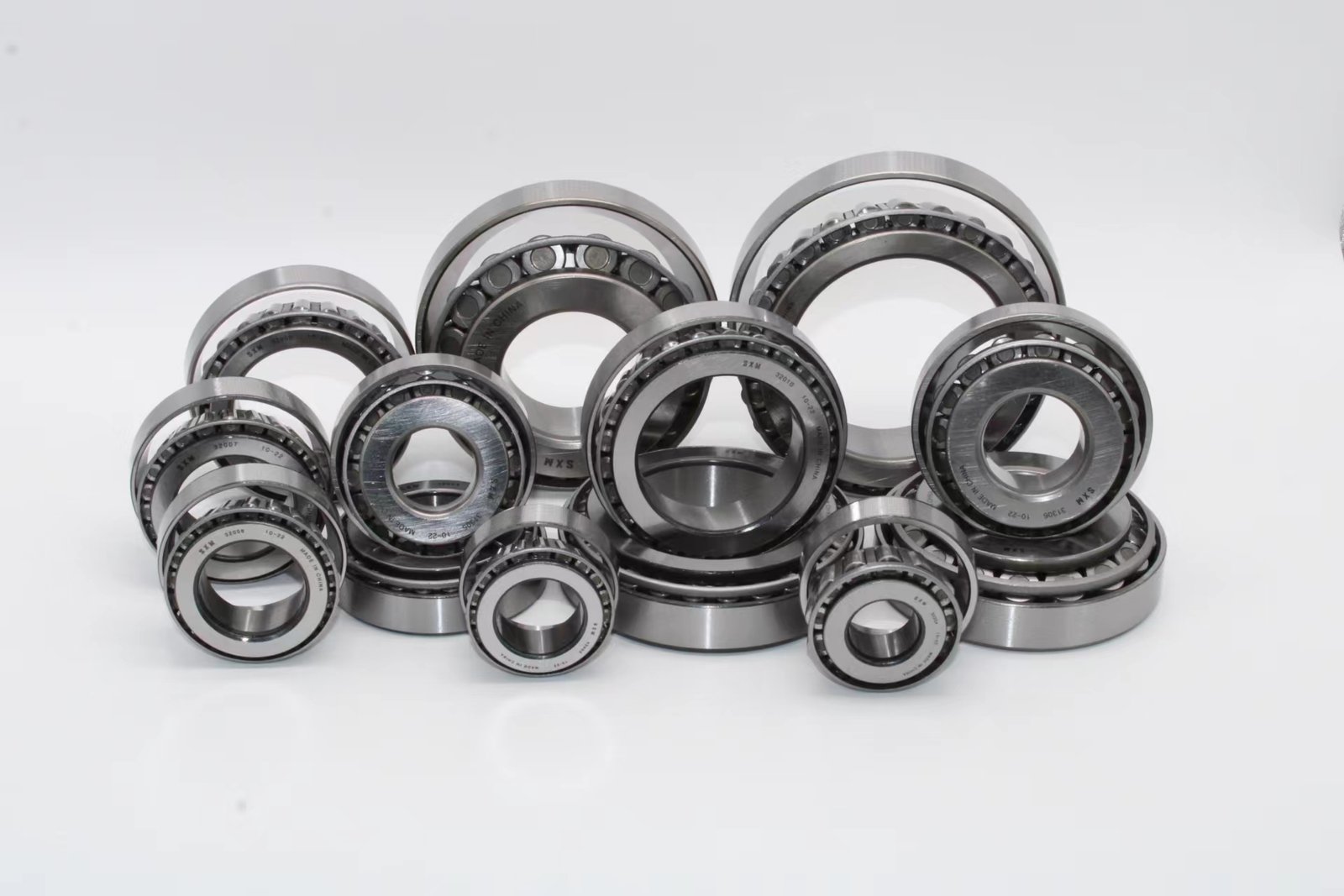

SXM Taper roller bearings are separable bearings. Its outer ring can be mounted individually from the unit of the inner ring, cage and rollers. Its radial and axial internal clearance can be adjusted during installation; even can be an interference installation. For taper roller bearing stamped steel cage is common selection. For large size bearing, welded steel cage or pin-assembled cage is used.
a. Durable and reliable
b. High rigidity, stand impact and vibration
c. Durable and reliable
d. Cost-efficient and safety
e. Withstand challenging and extreme conditions
SXM bearings are widely used in mining, steel mill cement, wood pellet, petroleum, coal, metallurgy, paper, chemical engineering machinery, pory machinery and other industries, and they were approved to be replaced international brands.
a.Hob bearing of truck
b. Shaft of large machine tool
c. Wheel shaft box
d. Large reducer
e. Bearing of rollers of the steel mill, etc.
Main Taper roller bearings Models：
30209、30230、32028、32044/DF、32216、32222、32228、32230、、352221、352224
—Contact us for more steel mill bearings
Main Taper roller bearings Models：30310、32011、30212、33018、30303、32208
Main Taper roller bearings Models：
32214、30318、30212、32008、32028、 32032、 32034、 31320
Main Taper roller bearings Models：
32207、32208、32210、30313、32309、32216、32213、33116、32310
| Metric Bearing No. |
d | D | T | B | C | R | r | Weight | Dynamic | Static |
| W | Cr | Cor | ||||||||
| mm | min | min | kg | KN | KN | |||||
| 30205 | 25.000 | 52.000 | 16.250 | 15.000 | 13.000 | 1.0 | 1.0 | 0.157 | 35.40 | 39.40 |
| 30206 | 30.000 | 62.000 | 17.250 | 16.000 | 14.000 | 1.0 | 1.0 | 0.231 | 45.40 | 50.50 |
| 30207 | 35.000 | 72.000 | 18.250 | 17.000 | 15.000 | 1.5 | 1.5 | 0.331 | 56.80 | 63.50 |
| 30208 | 40.000 | 80.000 | 19.750 | 18.000 | 16.000 | 1.5 | 1.5 | 0.422 | 63.00 | 74.00 |
| 32004X | 20.000 | 42.000 | 15.000 | 15.000 | 12.000 | 0.6 | 0.6 | 0.098 | 26.30 | 30.00 |
| 32005X | 25.000 | 47.000 | 15.000 | 15.000 | 11.500 | 0.6 | 0.6 | 0.112 | 28.00 | 34.10 |
| 32006X | 30.000 | 55.000 | 17.000 | 17.000 | 13.000 | 1.0 | 1.0 | 0.174 | 38.90 | 48.90 |
| 32007X | 35.000 | 62.000 | 18.000 | 18.000 | 14.000 | 1.0 | 1.0 | 0.220 | 42.00 | 56.00 |
| 32211 | 55.000 | 100.000 | 26.750 | 25.000 | 21.000 | 2.0 | 1.5 | 0.854 | 112.70 | 141.50 |
| 32212 | 60.000 | 110.000 | 29.750 | 28.000 | 24.000 | 2.0 | 2.0 | 1.168 | 132.80 | 179.60 |
| 32213 | 65.000 | 120.000 | 32.750 | 31.000 | 27.000 | 2.0 | 1.5 | 1.550 | 160.90 | 221.70 |
| 32214 | 70.000 | 125.000 | 33.250 | 31.000 | 27.000 | 2.0 | 1.5 | 1.641 | 173.10 | 237.10 |
| 32907 | 35.000 | 55.000 | 14.000 | 14.000 | 11.500 | 0.6 | 0.6 | 0.119 | 25.40 | 34.20 |
| 32908 | 40.000 | 62.000 | 15.000 | 15.000 | 12.000 | 0.6 | 0.6 | 0.158 | 31.60 | 46.10 |
| 32912 | 60.000 | 85.000 | 17.000 | 17.000 | 14.000 | 1.0 | 1.0 | 0.282 | 45.30 | 70.90 |
| 33109 | 45.000 | 80.000 | 26.000 | 26.000 | 20.500 | 1.5 | 1.5 | 0.536 | 87.10 | 117.20 |
| 33110 | 50.000 | 85.000 | 26.000 | 26.000 | 20.000 | 1.5 | 1.5 | 0.595 | 89.50 | 124.70 |
| 33113 | 65.000 | 110.000 | 34.000 | 34.000 | 26.500 | 1.5 | 1.5 | 1.300 | 142.80 | 220.40 |
| 33116 | 80.000 | 130.000 | 37.000 | 37.000 | 29.000 | 2.0 | 1.5 | 1.864 | 180.00 | 292.00 |
| 32308B | 40.000 | 90.000 | 35.250 | 33.000 | 27.000 | 2.0 | 1.5 | 1.124 | 110.20 | 141.50 |
| 32308C | 40.000 | 90.000 | 35.250 | 33.000 | 26.000 | 2.0 | 1.5 | 1.069 | 110.20 | 141.50 |
| Inch Bearing No. |
d | D | T | B | C | R | r | Weight | Dynamic | Static |
| W | Cr | Cor | ||||||||
| 09067/09195 | 19.050 | 49.225 | 18.034 | 19.050 | 14.288 | 1.3 | 1.3 | 0.174 | 38.00 | 38.20 |
| LM11949/LM11910 | 19.050 | 45.237 | 15.494 | 16.637 | 12.065 | 1.3 | 1.3 | 0.121 | 29.00 | 30.30 |
| LM12748/LM12710 | 21.430 | 45.237 | 15.494 | 16.638 | 12.065 | 1.3 | 1.3 | 0.121 | 27.80 | 33.40 |
| L44643/L44610 | 25.400 | 50.292 | 14.224 | 14.732 | 10.668 | 1.3 | 1.3 | 0.128 | 26.70 | 32.50 |
| 15101/15243 | 25.400 | 61.912 | 19.050 | 20.638 | 14.288 | 0.8 | 2.0 | 0.292 | 44.70 | 50.90 |
| 1985/1922 | 28.575 | 57.150 | 19.845 | 19.355 | 15.875 | 0.8 | 1.5 | 0.216 | 41.90 | 46.90 |
| M86649/M86610 | 30.162 | 64.292 | 21.433 | 21.433 | 16.670 | 1.5 | 1.5 | 0.332 | 48.10 | 67.00 |
| M88043/M88010 | 30.162 | 68.262 | 22.225 | 22.225 | 17.462 | 2.3 | 1.5 | 0.398 | 56.10 | 71.00 |
| M88043/M88011 | 30.162 | 68.262 | 22.225 | 22.225 | 17.462 | 2.3 | 2.3 | 0.373 | 56.10 | 71.00 |
| LM67048/LM67014 | 31.750 | 61.986 | 15.875 | 16.764 | 11.811 | Sp | 1.3 | 0.197 | 33.90 | 42.50 |
| LM67049A/LM67014 | 31.750 | 61.986 | 15.875 | 16.764 | 11.811 | 0.8 | 1.3 | 0.203 | 33.90 | 42.50 |
| 15123/15244 | 31.750 | 62.000 | 19.749 | 19.050 | 15.875 | SP | 1.3 | 0.252 | 44.70 | 50.90 |
| 15123/15245 | 31.750 | 62.000 | 18.161 | 19.050 | 14.288 | SP | 1.3 | 0.238 | 44.70 | 50.90 |
| 15126/15245 | 31.750 | 62.000 | 19.050 | 20.638 | 14.288 | 0.8 | 1.3 | 0.247 | 44.70 | 50.90 |
| HM89443/HM89410 | 33.338 | 76.200 | 29.370 | 28.575 | 23.020 | 0.8 | 3.3 | 0.653 | 79.60 | 107.00 |
| LM48548/LM48510 | 34.925 | 65.088 | 18.034 | 18.288 | 13.970 | SP | 1.3 | 0.250 | 45.70 | 58.00 |
| HM88649/HM88610 | 34.925 | 72.233 | 25.400 | 25.400 | 19.842 | 2.3 | 2.3 | 0.483 | 66.90 | 87.30 |
| 2788/2729 | 38.100 | 76.200 | 23.812 | 25.654 | 19.050 | 3.5 | 0.8 | 0.500 | 75.50 | 94.00 |
| LM102949/LM102910 | 45.242 | 73.431 | 19.558 | 19.812 | 15.748 | 3.5 | 0.8 | 0.304 | 55.90 | 78.10 |
| LM603049/LM603011 | 45.242 | 77.788 | 19.842 | 19.842 | 15.080 | 3.5 | 0.8 | 0.355 | 57.50 | 73.50 |
| 369A/362A | 47.625 | 88.900 | 20.638 | 22.225 | 16.513 | 3.5 | 1.3 | 0.528 | 72.40 | 84.60 |
| 369S/362A | 47.625 | 88.900 | 20.638 | 22.225 | 16.513 | 2.3 | 1.3 | 0.528 | 72.40 | 84.60 |
| 455/453A | 50.800 | 107.950 | 27.783 | 29.317 | 22.225 | 0.8 | 0.8 | 1.234 | 109.20 | 144.20 |
| 368S/362A | 51.592 | 88.900 | 20.638 | 22.225 | 16.513 | 2.0 | 1.3 | 0.479 | 72.40 | 84.60 |
| 368S/362 | 51.592 | 90.000 | 20.000 | 22.225 | 15.875 | 2.0 | 2.0 | 0.487 | 72.40 | 84.60 |
| 8658 | 73.025 | 100.013 | 16.993 | 16.993 | 12.954 | 1.5 | 0.4 | 0.360 | 53.10 | 86.40 |
| 8682 | 73.025 | 100.096 | 16.993 | 16.993 | 12.954 | 1.5 | 0.4 | 0.362 | 53.10 | 86.40 |
